Details

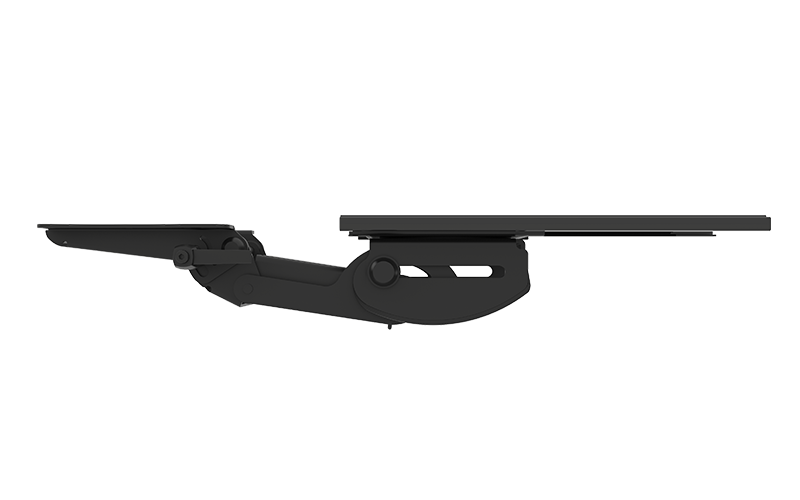

• Lift‑and‑lock articulating arms provide quick and easy height adjustment. To position, the platform to the desired height, simply tilt the front edge of the platform up, then raise or lower the entire platform. Release the platform and the arm will lock into place.
  • Lift‑and‑lock height adjustment
  • Optional positive tilt lock-out tab
  • 12.3″ glide track
  • 13.0″ minimum required for full retraction
  • +22.6º/12.4º tilt adjustment
  • 6.0″ height adjustment range
    • 2.4″ above track | 3.6″ below the track
  • 360º glide track rotation
  • Positions flush with worksurfaces
  • Recommended for shallow worksurfaces
  • Recommended for PL003-27N notched platform for full retraction
  • Warranty: 15 yr.
