Details

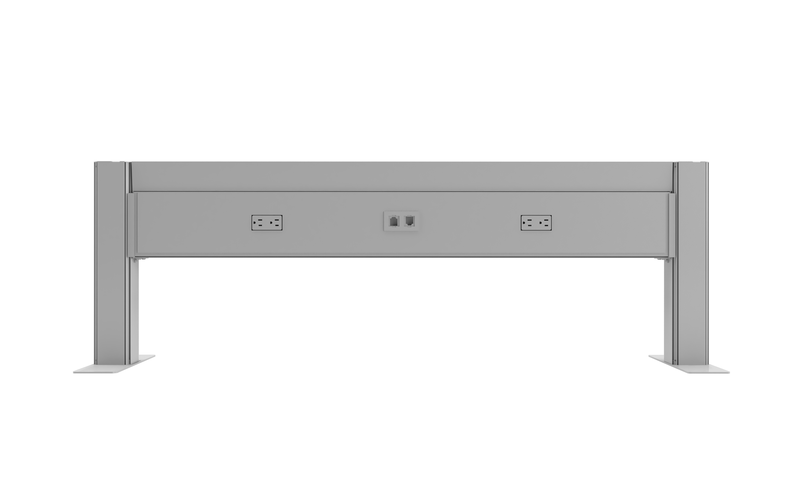

• Four available widths: 36.0”, 48.0”, 60.0”, and 72.0”
• 18.0”h x 3.3”w post
• 3.6”w x 12.0”d T foot – (standard) 3.6”w x 7.8”d L foot – (optional)
• Power and data can be utilized on both sides of the rail
• Separate cable/data channel that allows for lay-in cable runs
• Up to ten rails can be connected to each other (for anything over ten rails, contact a local electrician)
• Up to eight 125V AC outlets per rail and four inputs for data
• Specify base or ceiling feed
• Flexible power feeds with 3.5″ of extension through flexible metal conduit
• UL listed as an Office Furnishing Accessory (UL1286), UL183, and in full compliance with NEC electrical specifications
• Optional electric compliance available for municipal standards such as NY Box, California Title 24, and Chicago Please reference the Railway Spec Guide for more details
• 20 amps
• Four circuits, eight wire Byrne™ 8trac system
• Up to 13 duplex receptacles per circuit (total of 52 available duplex receptacles allowed)
• 12 AWG line conductors which share a 12 AWG ground and 10 AWG neutral
• The fourth circuit is isolated and dedicated
• Warranty: 15 yr. (structural) / 7 yr. (electrical)
